Solution of the Month: Custom Designed and Built Laser System

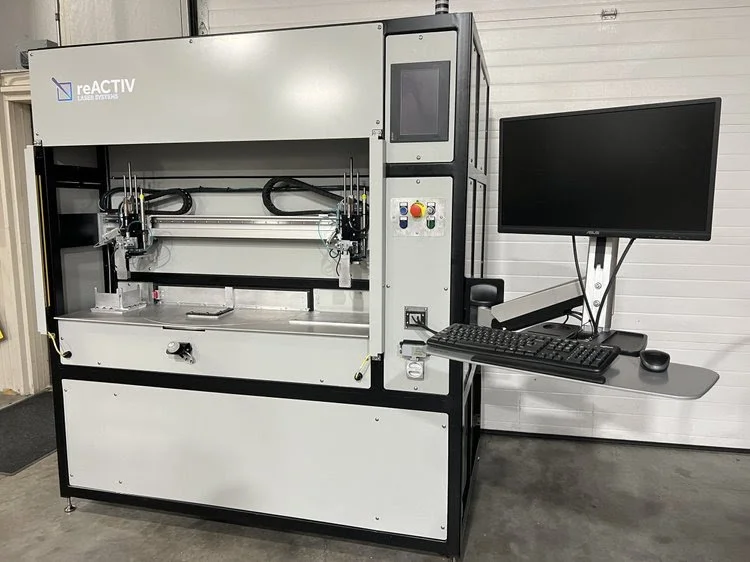

Custom Designed and Built Laser System for Automated Nameplate Laser Marking with Part Inspection

• Designed, manufactured, customer tested and delivered in approximately 14 weeks

• Integrated Vision System to inspect raw material, pre laser engraving and post laser engraving

• Vision System can save each image and reads 1D, 2D & QR Codes as well as human readable text. Saves pass fail data, bar code date and human readable data to database for quality assurance purposes

• Engineered sensors allow for completely variable input and output part counters allowing for variation in manufacturing product flow

• Dual position rotary dial with internal laser processing allows for 99% laser operation time ensuring the highest efficiency

• High speed magnetic linear motors quick move product form station to station with a very high degree of accuracy

• Flexible tooling allows for a quick changeover from the smallest part of 1" x 8" to the largest size of 8" x 8" for automatic processing

• Manual load of oversized parts up 13" x 13" with vision pre and post inspection as well
